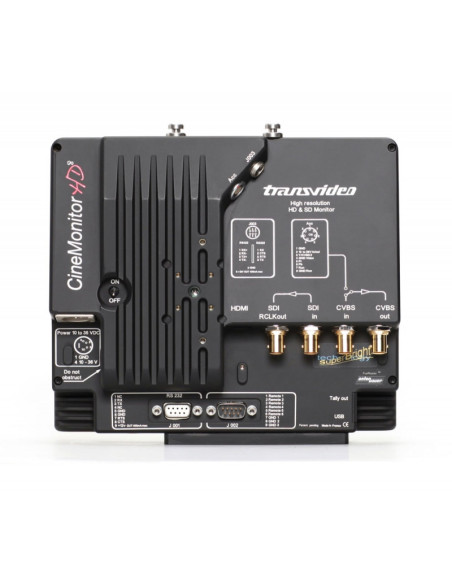

CineMonitorHD 8" Evolution

Name: CineMonitorHD 8" Evolution
Brand: TRANSVIDEO
SKU: 420

The CineMonitorHD8 Evolution is a 8 inch on-board monitor with wide color gamuts and loaded with a complete tools package. It is rugged and fully sealed (no holes, no noisy fans), with precision machined aluminium housing. It also features an anti reflective glass protecting the LCD screen and high quality connectors.

In Stock

Ask about product

Description
Product Details

Video Inputs 1 x 3G HD/SD SDI + 1 Rclk out (BNC)

1 x CVBS + Loop (BNC)

1 x ACCessory YPrPb / RGB / CVBS (Lemo8)

1 x mini HDMI

Contrast ratio

Viewing angle

Brightness max 500:1

±85° H & V

450Nits

Dimensions

(l x h x d) 215 x 190 x 60 mm

8.5 x 7.5 x 2.4 inches

Weight 1760g, 3.9lbs

Power

Power Consumption XLR4 connector (-1, +4) - with galvanic insulation

10 - 36V DC / 20W

Brand TRANSVIDEO
